- High quality material: The use of high quality aluminum, iron, plastic material, good hardness, wear resistance, durable, durable.
- Enjoy the ride: This kit can turn your bike into a motorized bike up to the Max.
- Fast speed: 3600rpm, great efficiency and convenience, allowing you to fully enjoy the fun of commuting and short trips.
- High performance: Four-stroke engines are more stable, reliable and quieter than two-stroke engines.
- Continuous output: In addition, the 56mm bore increases the load carrying capacity and reduces the operating temperature, making it easier to start, while providing continuous output over a certain speed range.
Specifications

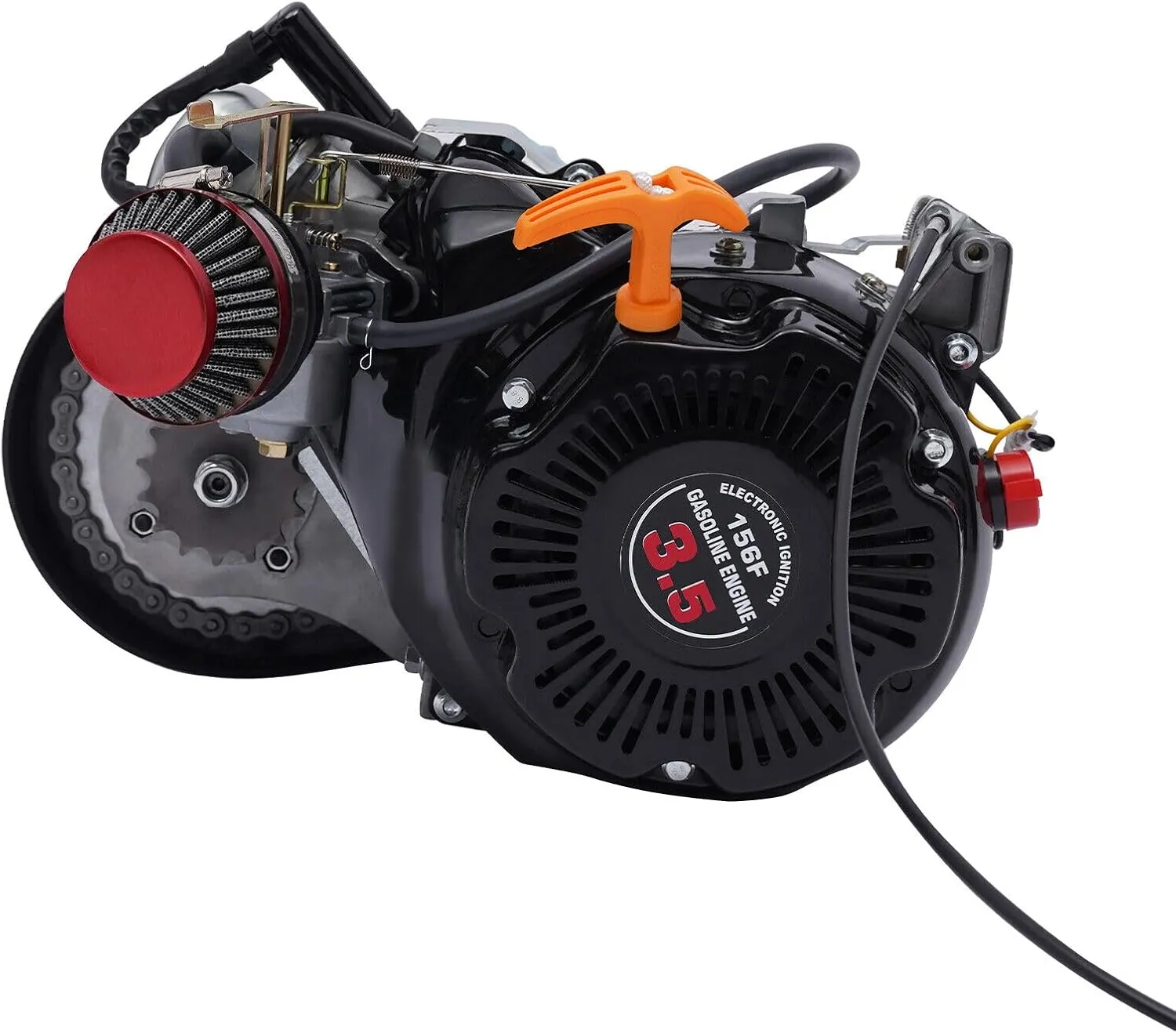

Model: EZ-156F
Type: Forced Air Cooling, 4-Stroke, OHV, Single-cylinder, Inclined by 25 Degrees
Starting System: Recoil Start
Material: Aluminum, Iron, and Plastic
Color: Black, Silver
Max Output: 3HP
Rated Power: 2KW/3600rpm
Max. Torque: 4.5N.m/2500rpm
Fuel Tank Capacity: 1.6L/0.42gal
Fuel Consumption: <420 g/KW.h
Oil Capacity: 0.4L/0.1gal
Oil Consumption: <6.8 g/KW.h
Min. Stable Speed Unloaded: 3600rpm
Reduction Ratio: 1:1
Bore x Stroke: 56x40 mm
Displacement: 100cc
Compression Ratio: 7:1
Product Size: 28.5*35*28cm/11.2*13.7*11in
Packing Size: 73*34*25cm/28.74*13.38*9.84in
Gross Weight: 21kg/46.29lbs
Net Weight: 20kg/44lbs
Highlights
Brand New, With High Quality
Trouble-free Installation
100cc 4-Stroke Gasoline Engine
Complete Kit
Large Capacity Fuel Tank
Low Fuel Consumption
Safe and Stable
Wide Application
Fast Speed
Good Heat Dissipation Performance
Strong Chain
Notes:We strongly recommend professional installation. Please contact us if you have any questions.
Fits (As a Reference)
For Beach Bikes with Large Triangular Frame Space
Package Included
1* 100cc 4-Stroke Gasoline Engine
1* Fuel Tank
1* Base Bracket
1* Exhaust Pipe
1* 44 Tooth Chain
1* Chain Tensioner
1* Chain
1* Chain Guard
2* Fixed Iron Pieces
1* Spark Plug Tool
1* Fuel Line
1*Fuel Tank Cap
1* Exhaust Cushion
1* Fuel Filter
1*Fuel Valve
1* Chain Tension Adjusting Tool
1* English Manual
Other Mounting Accessories
